Well Services (High Pressure Testing & Calibration)

With a fully equipped workshop / modern testing facility and trained personnel, it is our mission to be established as the preferred vendor offering Hydrostatic High Pressure Testing and Calibration.

Services Offered

• High Pressure Testing
• Calibration of Pressure Gauges and Chart Recorders
• High Torque Bolting & Fastening Hydraulic Tools available
• Sales & Rental of Oilfield Equipment including Hydrostatic Pumps and Test Systems, Chart Recorders, Air Amplifiers, Torquing Equipment
• In-Situ Bolt Tensioning & Connection Fastening
• In-Situ Hydrostatic Testing & Recording
• Custom High Pressure Rigid SS Tubing, Bending & Threading
• Supply of High Pressure Fittings, Needle Valves, Check Valves, Connectors

•
•
•

Hydrostatic High Pressure Testing

Our Dual Hi-Lo MAXIMATOR Hydrostatic Test Pump Systems are rated to provide testing capabilities from 0 - 36,000 PSI.

Recordable Testing Range available:

• Analog Chart Recorder : Pressure Range 0 to 30,000PSI
• Digital Chart Recorder : Pressure Range 0 to 36,000PSI

Testing is performed in a controlled environment employing HSE best practices and in accordance with manufacturer's standards and client's procedures.

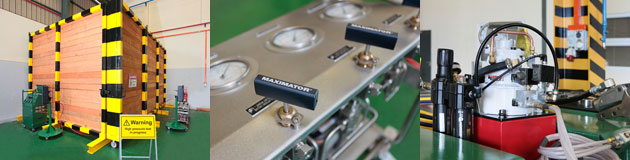

HP Testing Facility Features:

• Isolated Pressure Test Bay
• Primary and Secondary Test Pump Systems
• CCTV Monitoring System
• 10tons Overhead Crane
• 4tons Forklift
• Primary and Secondary Air Compressors
• 24/7 operations

Calibration - Pressure Gauges & Chart Recorders

Our ADDITEL Pressure Generator and Digital Pressure Calibrator have the ability to calibrate ranges from 0 - 36,000 PSI. Calibration is performed in a controlled environment for the following devices:

• Analog Pressure Gauges
• Analog Chart Recorders

Additional Workshop Equipment available on rentals basis:

TORX WORKS In-Situ / In Shop Bolting Torque Pump and Links (0 - 10,000 PSI / 0 - 1,723 LB. FT. Torque)

Calibrated Fastening of A.P.I., RTJ & RF Flanged Connections (0 - 1,723 LB. FT. Torque) Link Bolt Sizes Range: (1 inch to 3 inches)
Additional Pump Capabilities: Hydraulic Flange Spreader, Nut Splitter & Power Pack

Custom Bending & Assembly of Rigid High Pressure Stainless Steel Tube

(1/4" 316 SS & 3/8" 316 SS)
1/4" Tube, Collar / Gland: Coning & Threading
3/8" Tube, Collar / Gland: Coning & Threading

•
•
•
